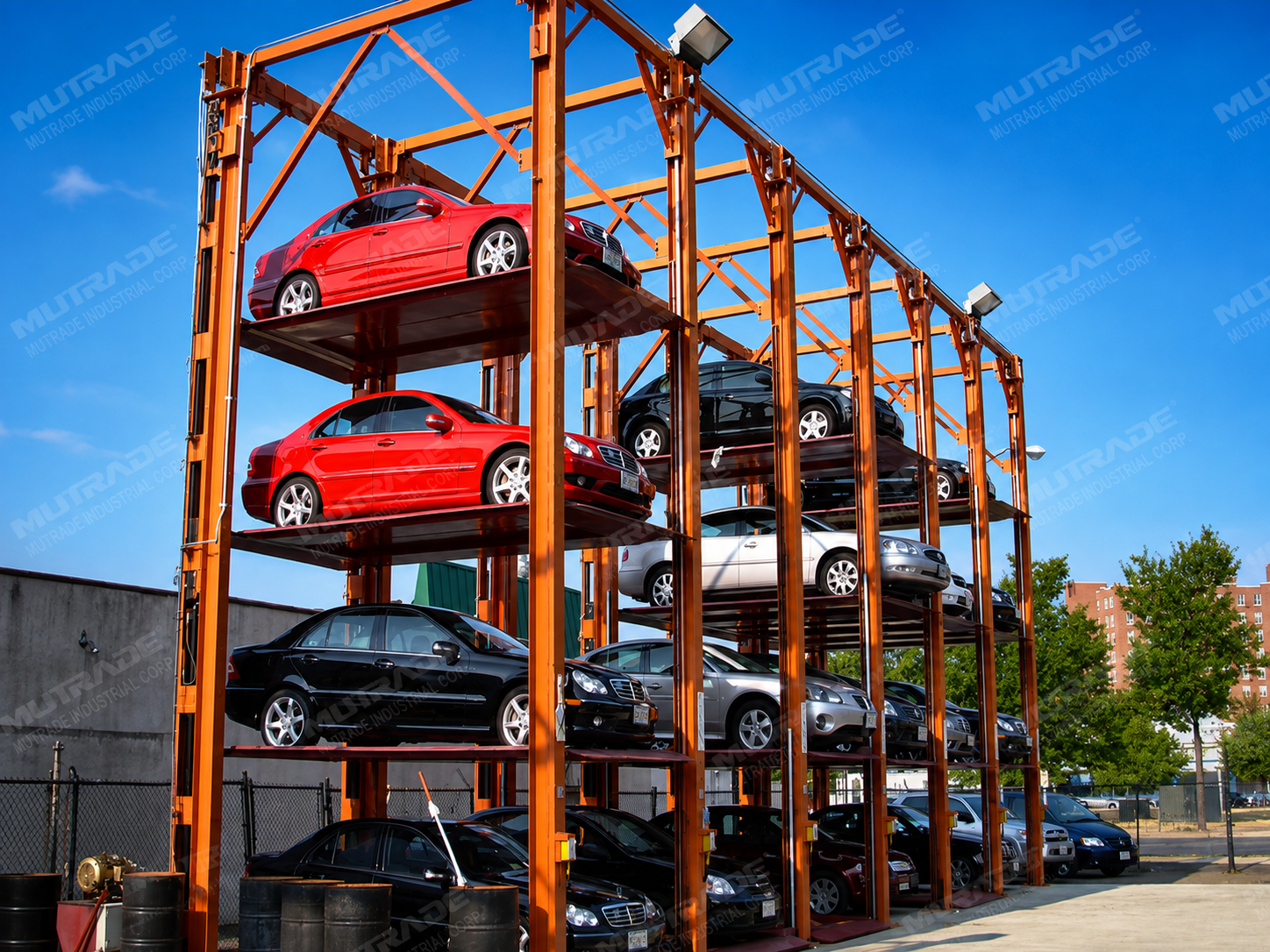

Hydro-Park 3230 Outdoor Quad Car Storage Project in Canada

For this outdoor vehicle storage project in Canada, Mutrade configured    17 Hydro-Park 3230 four-level car stackers in two modular groups:    11 units + 6 units. With four vehicle positions per unit, the complete system provides    68 parking spaces.

Project at a Glance

68 Parking Spaces from 17 Ground-Level Footprints

The capacity calculation is straightforward: 17 Hydro-Park 3230 units × 4 vehicle positions = 68 parking spaces.

Compared with using the same 17 footprints as conventional single-level parking, the project creates 51 additional vehicle positions. The key advantage is the use of vertical space instead of additional land.

Why Hydro-Park 3230 Was Selected

The project required a compact vehicle-storage system that could significantly increase outdoor capacity while remaining mechanically straightforward, serviceable and suitable for passenger cars and SUVs.

Hydro-Park 3230 uses a four-post structure and hydraulic lifting to store vehicles on four vertical levels. It is particularly suitable for managed parking and storage environments such as dealerships, fleet compounds, vehicle logistics facilities, long-term storage and valet-operated sites.

Modular Layout: 11 Units + 6 Units

For this Canadian project, the 17 stackers are divided into two groups: one group of 11 units and a second group of 6 units. This modular arrangement helps adapt the system to site geometry, vehicle circulation and access requirements.

Adjacent Hydro-Park 3230 units can be configured with shared middle posts, helping reduce duplicated structural components and create compact continuous rows.

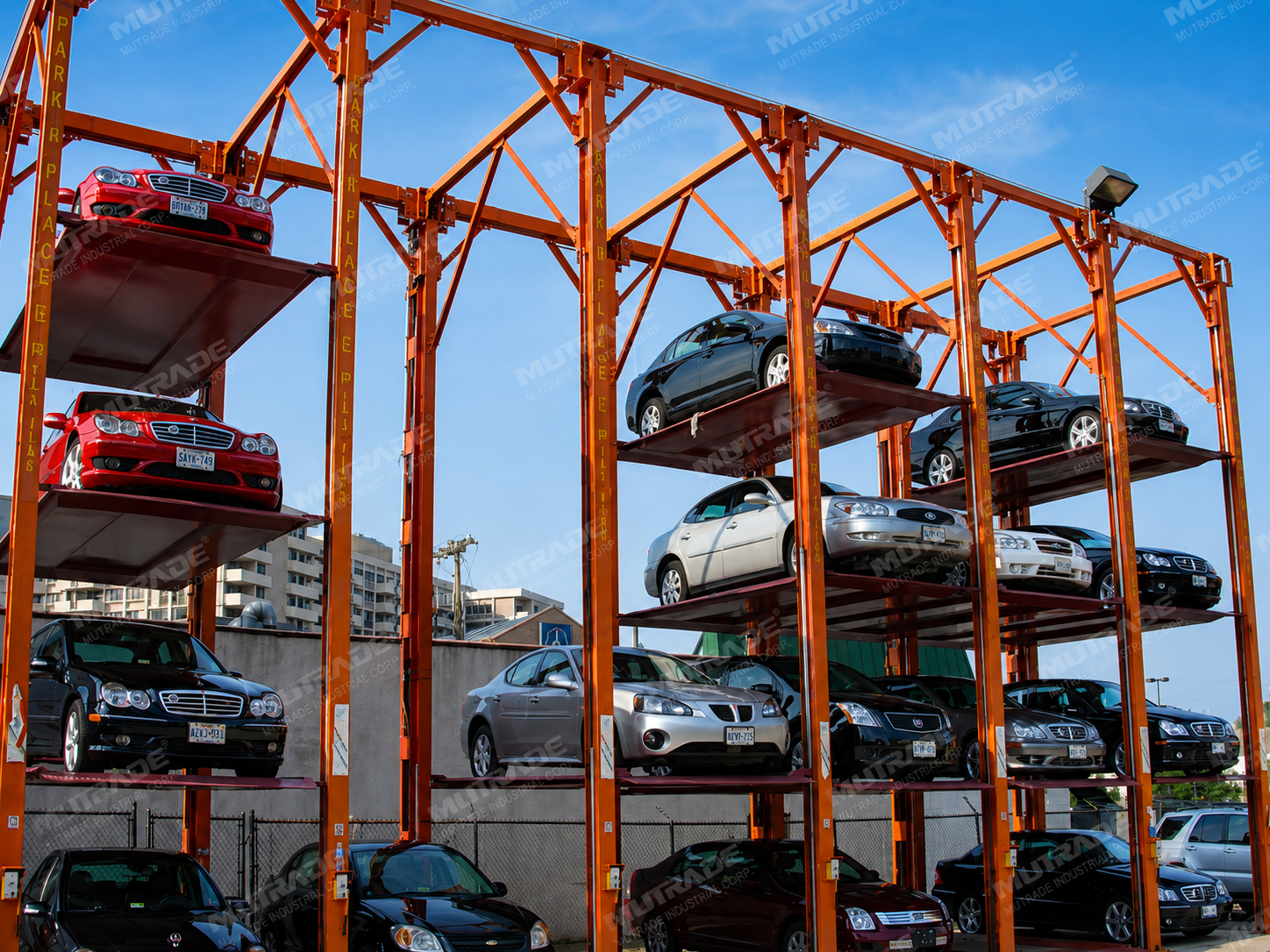

Reference multi-unit Hydro-Park 3230 installation showing a high-density modular layout.

Hydro-Park 3230 Technical Configuration

Outdoor Engineering for Canadian Conditions

Outdoor installation requires additional attention to climate, drainage and long-term corrosion protection. For a Canadian project, the engineering review should consider:

• rain, snow and freeze-thaw exposure;

• drainage around foundations and platforms;

• low-temperature hydraulic performance;

• electrical enclosure protection;

• corrosion protection of exposed steel;

• local structural, wind and snow-load requirements where applicable;

• planned inspection and preventive maintenance.

Hydro-Park 3230 is suitable for outdoor installation. Depending on project requirements, hot-dip galvanizing can be specified as an optional corrosion-protection treatment.

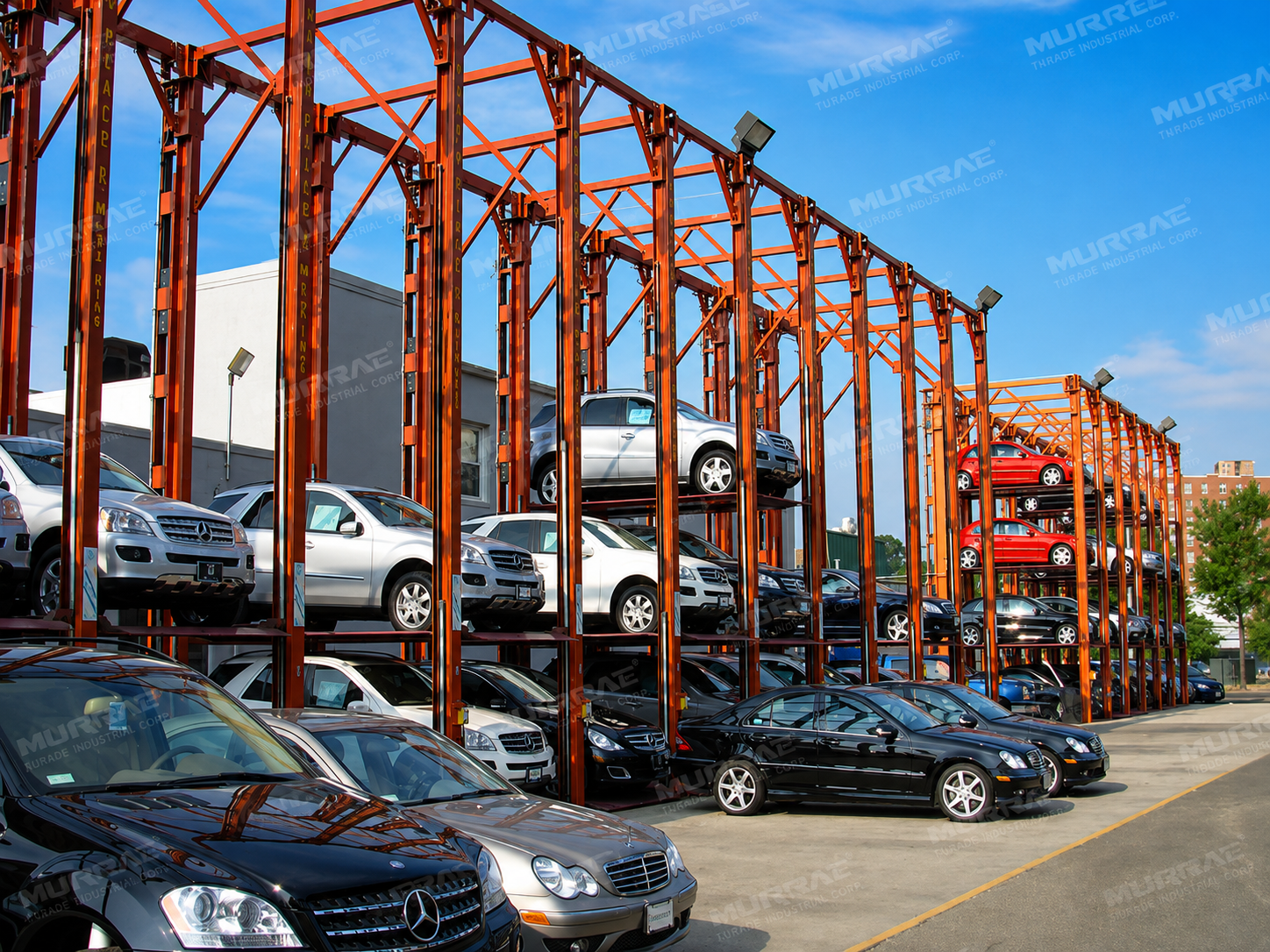

Outdoor installation reference. Final surface treatment is selected according to project conditions.

Safety and Everyday Operation

Hydro-Park 3230 combines hydraulic vertical movement with an anti-falling safety lock and manual lock-release mechanism. Operation is performed through a key switch with 24 V control voltage.

Operators should follow the approved operating procedure, keep the movement area clear and ensure that each vehicle stays within the approved weight and dimensional limits.

Reference Dimensions

Why Four-Level Vehicle Storage Can Be More Efficient

For this 17-unit configuration:

• 17 conventional ground-level vehicle positions;

• 68 vehicle positions with Hydro-Park 3230;

• 51 additional vehicle positions;

• 4× total storage capacity within the same basic parking footprints.

This approach can be attractive where land is expensive, expansion space is limited or a vehicle-storage operator needs substantially more capacity without constructing a conventional multi-storey parking building.

Typical Applications

• car dealerships and inventory compounds;

• vehicle import and distribution facilities;

• rental and corporate fleets;

• long-term vehicle storage;

• collector and premium vehicle storage;

• service centers and valet-operated facilities.
