Hydro-Park 2925
Mutrade
Hydro-Park 2925
NEW! Eco Parking Stackers 4 Floors For SUV
Introduction

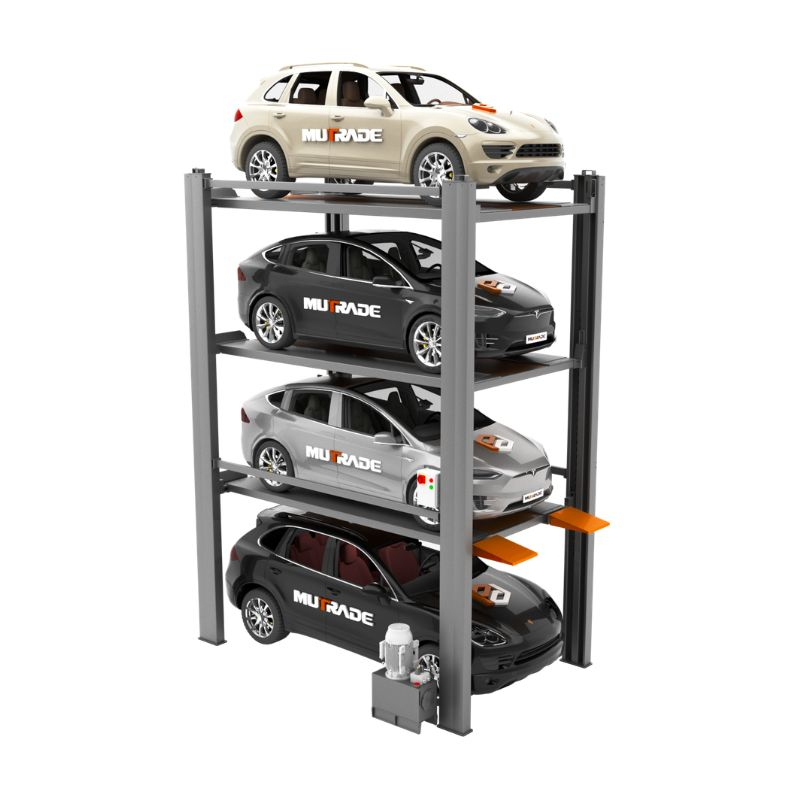

Hydro-Park 2925 — Mutrade’s latest innovation in compact vertical parking. Featuring 4 levels in a space-saving footprint, it accommodates four SUVs (up to 2,500 kg each and 2,050 mm in height). Its ultra-compact structural design achieves a lower required ceiling height than conventional parking lifts — making it an ideal solution for valet operations, private collections, or premium car storage where space is at a premium.
Features
- Commercial grade
- Overlap platform design
- Ramps total height 200mm
- Capacity: 2500kg per platform
- Clear height 2100mm on each floor
- 4000mm/min (no-load) traveling speed
- 4.0kw hydraulic pump
- Powder coating finishing
- Dynamic anti-fall lock
- Dust/oil dripping cover
- Lock release failure detection
- Emergency stop button
- Up & down key switch
- TUV Rheinland Certified

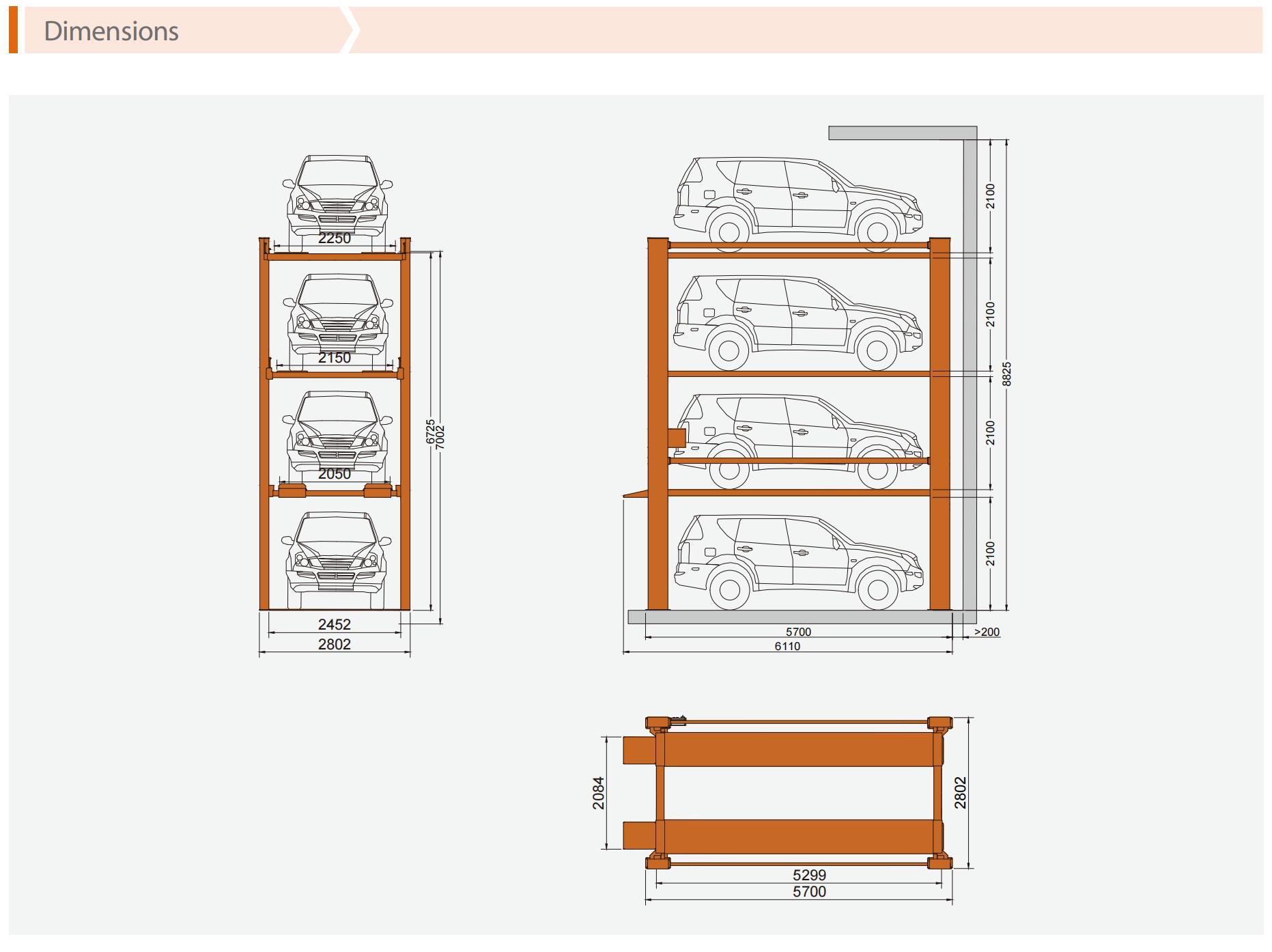

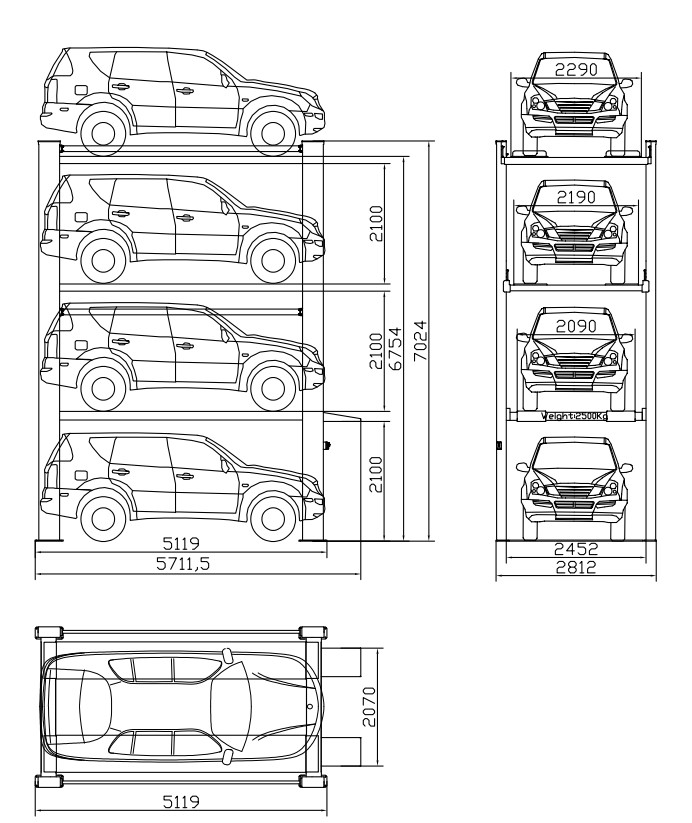

Specifications
| Model | Hydro-Park 2925 |
| Lifting capacity | 2500kg per parking space |
| Lifting height | Ground floor and 2nd 2100mm |
| Equipment height | 7002mm |
| Usable platform width | 2452mm |
| Total width | 2802mm |
| Total length | 6110mm |
| Total ramp height | 200mm |
| Power pack | 4.0Kw hydraulic pump |
| Available voltage of power supply | 220V-480V, single or 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Safety lock | Dynamic anti-falling lock |
| Lock release | Semi-auto lock release |
| Lifting speed | 4000mm/min (no-load) |
| Finishing | Powdering coating |
