Hydro-Park 2920
Mutrade
Hydro-Park 2920
NEW! Eco Quad Parking Stackers For Sedans
Introduction

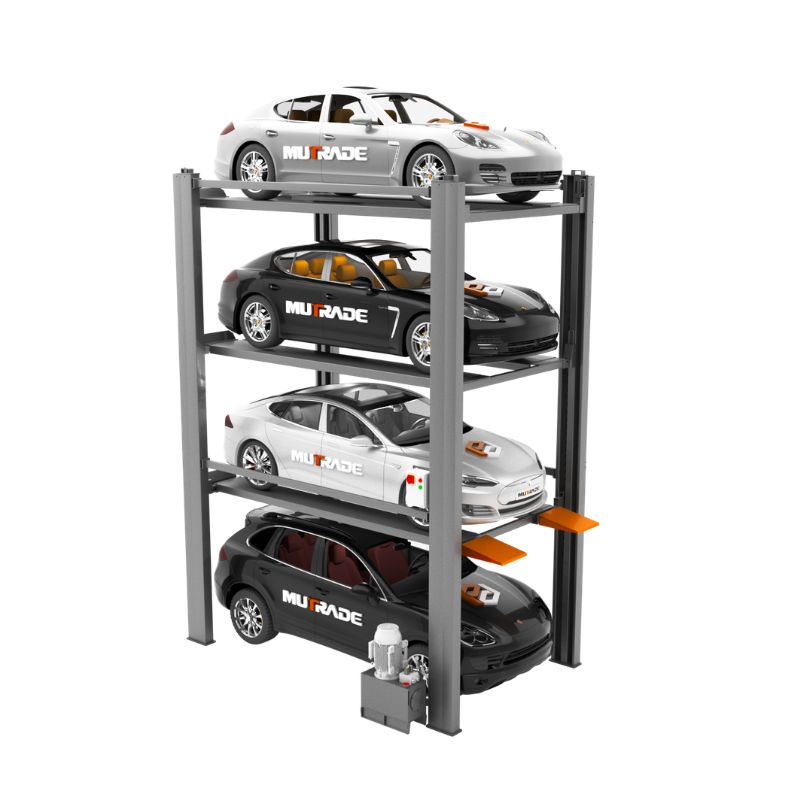

Hydro-Park 2920 is a MUTRADE newly developed 4-floor version of HP2236 and can be used as a 4-floor stacker parking like eco version of HP3230. The design of HP2920 is based on the HP2236, the equipment is used as valet parking or storage. The platforms move only vertically driven by a hided strong hydraulic cylinder with wire ropes.
Features
- Commercial grade
- Overlap platform design
- Ramps total height 150mm
- Capacity of 2000KG per platform

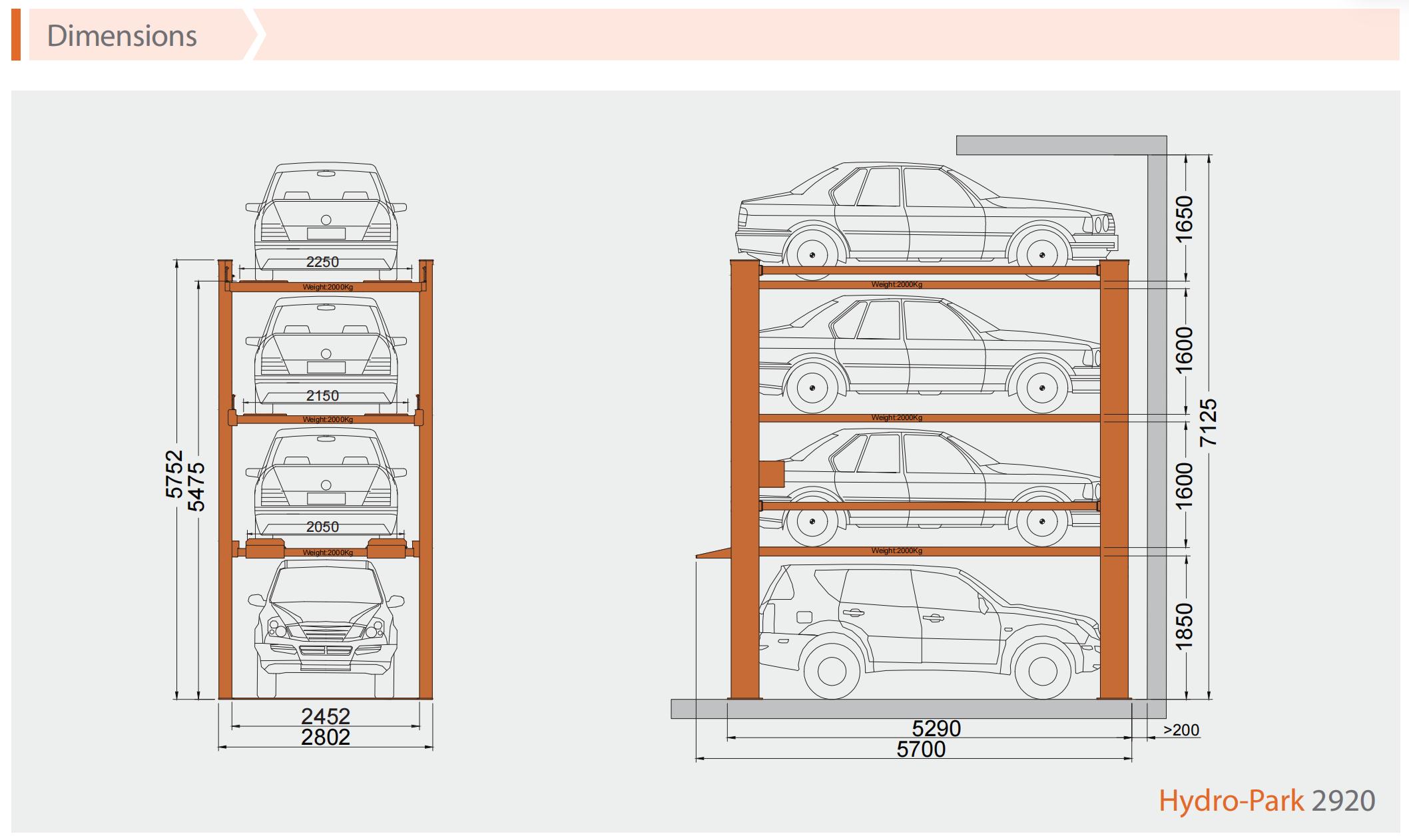

- Entrance width 2452mm, 2nd and 3rd floor 1600mm driven width
- Clear height of GF 1850mm and 2nd -3rd floor 1600mm
- 4.0kw hydraulic pump
- Powder coating finishing

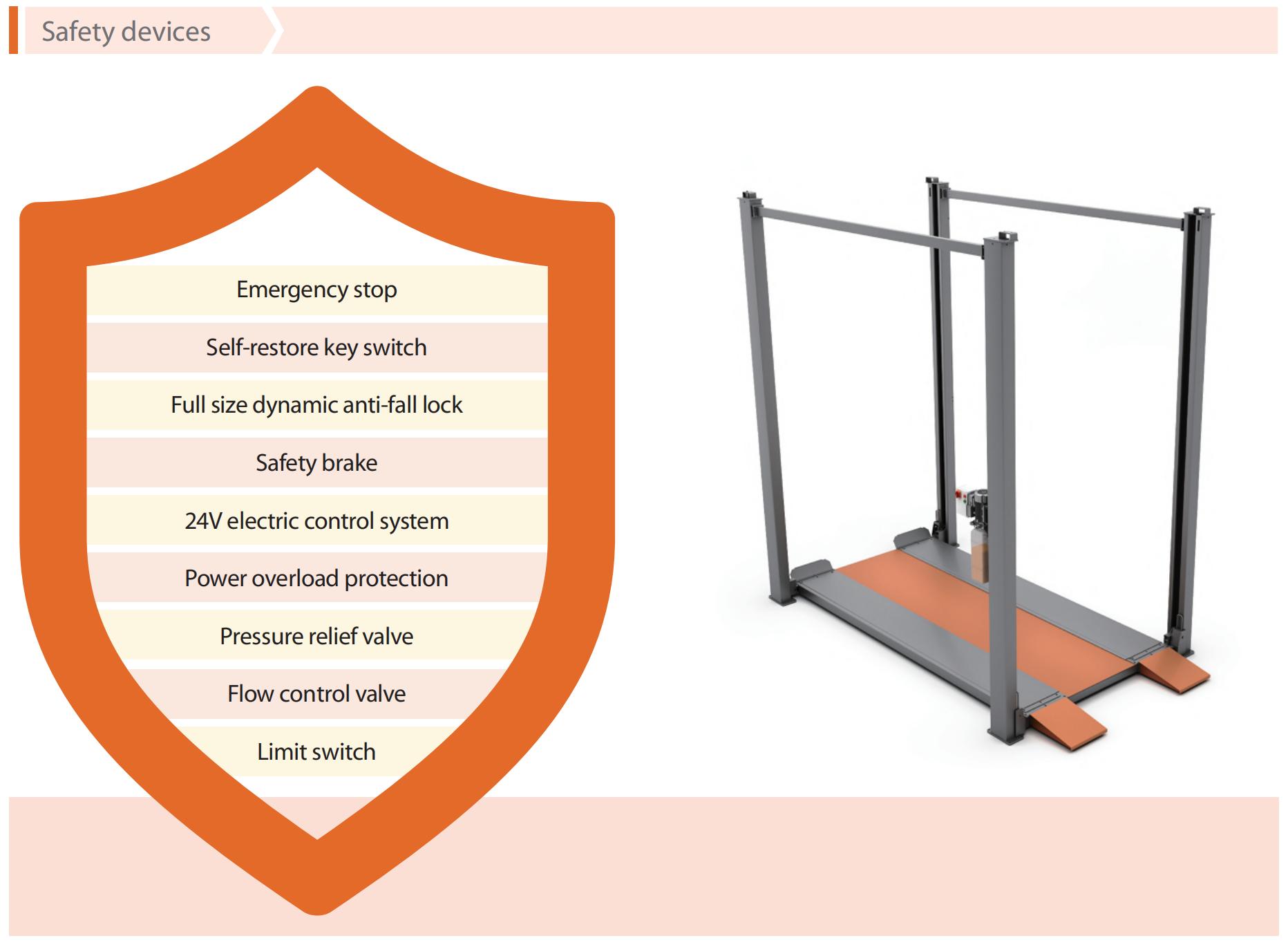

- Dynamic anti-fall lock
- Dust/oil dripping cover
- Lock release failure detection
- Semi-auto lock release
- Emergency stop button
- Up & down key switch
- Self-standing & supporting structure (Optional)
- TUV Rheinland Certified
| Model | Hydro-Park 2920 |
| Lifting capacity | 2000kg per parking space |
| Lifting height | Ground floor and 2nd 2100mm |
| Equipment height | 7002mm |
| Usable platform width | 2452mm |
| Total width | 2802mm |
| Total length | 6110mm |
| Total ramp height | 200mm |
| Power pack | 4.0Kw hydraulic pump |
| Available voltage of power supply | 220V-480V, single or 3 Phase, 50/60Hz |
| Operation mode | Key switch |
| Operation voltage | 24V |
| Safety lock | Dynamic anti-falling lock |
| Lock release | Semi-auto lock release |
| Lifting speed | 4000mm/min (no-load) |
| Finishing | Powdering coating |
