Hydro-Park 4127 - 2500kg Multi-Platform Parking Lift

Can parking lifts go vertical and horizontal at the same time? The answer is Hydro-Park 4127, two level multi-platform parking lift that offers 4 or max 6 parking spaces. It’s much more space-efficient than multiple lifts due to the absence of columns between the platforms. Each platform in the system is independent from each other, making the parking process as convenient as possible. It’s also featured by large capacity, fast speed and high safety that assured by commercial grade power pack, robust hydraulic cylinder and strong steel cables.
sharethis sharing button
  • HP4127

  • Mutrade

Hydro-Park 4127

Space- Efficient Two Level Multi-platform Parking Lift



Is it possible for parking lifts to go both vertically and horizontally simultaneously? The solution lies in the Hydro-Park 4127, a two-level multi-platform parking lift capable of accommodating 4 or up to 6 parking spaces. This innovative system maximizes space efficiency by eliminating the need for columns between platforms. Each platform operates independently, ensuring utmost convenience during the parking process. Moreover, it boasts ample capacity, rapid speed, and enhanced safety, thanks to its commercial-grade power pack, sturdy hydraulic cylinder, and robust steel cables.

- Triple-wide system for 6 cars

- Easier & safer access of ground vehicles

- 2700kg capacity per platform

- Standard lifting height: 2100mm

- Full-width platform of 2200mm

- Rugged posts & beams construction with H steel

- Hydraulic cylinder lifting mechanism per platform

- Compact structure with smaller cover area

- Fast lifting speed of 8m/min

- Intelligent PLC software control

- Easy operation with IC card or manual input

- Customizable power pack location

- Motorized system is optional (capacity 2000kg)

- Fine surface coating supported by Akzo Nobel powders

- Dimensions and specs customizable on request


Model Hydro-Park 4127
Lifting capacity 2700kg ( 2000kg optional)
Lifting height 2100mm
Usable platform width 2200mm
Available voltage of power supply 100V-480V, 1 or 3 Phase, 50/60Hz
Operation mode IC card/ Manual input
Operation voltage 24V
Speed 8m/min
Lock release Electric auto release
Finishing Powdering coating

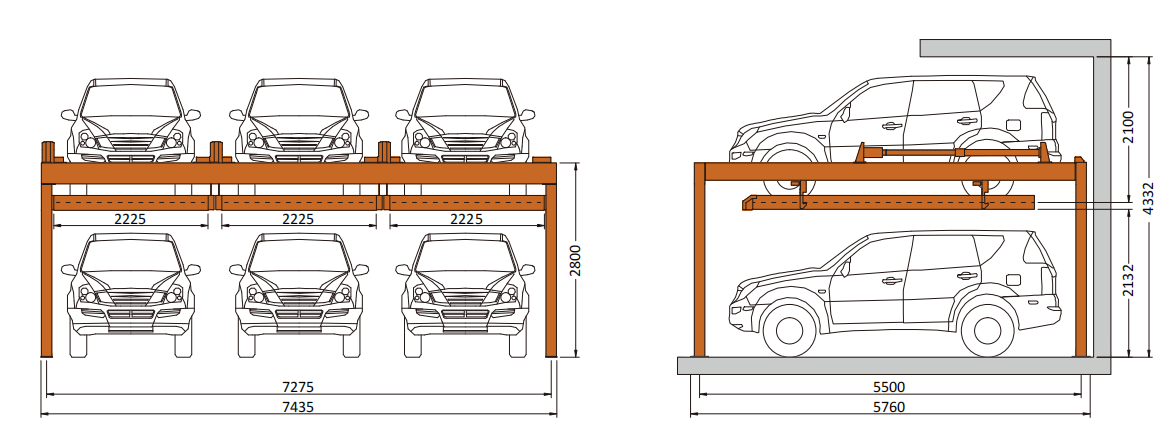

Dimensional Drawing


Main Features

New design control system

The operation is simpler, the use is safer, and the failure rate is reduced by 50%.


Gentle metallic touch, excellent surface finishing

After applying AkzoNobel powder, color saturation, weather resistance and its adhesion are significantly enhanced



Galvanized screw bolts based on the European standard



- In garages for private houses or apartment buildings

- To offer more parking spots in office buildings or residential and commercial buildings

- For underground car parking lots of office buildings or commercial buildings

- For car dealerships, car rental companies, logistics companies or massive storage at port terminals

- Vintage car collections or car clubs

- To increase capacity in underground parking lot, e.g., of hotels, shopping malls, office buildings, etc.
