S-VRC-2
Mutrade
S-VRC-2
Double-deck Scissor Vertical Reciprocating Conveyor
PROFESSIONAL PARKING SOLUTION PROVIDER!
Introduction
The rapid growth in the number of cars causes shortage of parking spaces, making traffic difficult and worsening the quality of living environment. S-VRC-2 is one of the systems that could perfectly solve the issue. It’s dual functional, acting as a parking lift to stack 1 vehicle on top of another; or an elevator to transport vehicles between ground and basement parking floor. Either way, when it folds down, the top platform goes totally invisible and can be covered with suitable pavement to blend in with the nature.
- Dual functions, independent parking or car transportation
- Possible to décor the top platform and make it disappear
- Optional to lift 2 cars up together
- Overall lifting capacity: up to 6000kg
- Platform size: up to 6000mm long, and 5000mm wide
- Foundation pit is required on all conditions

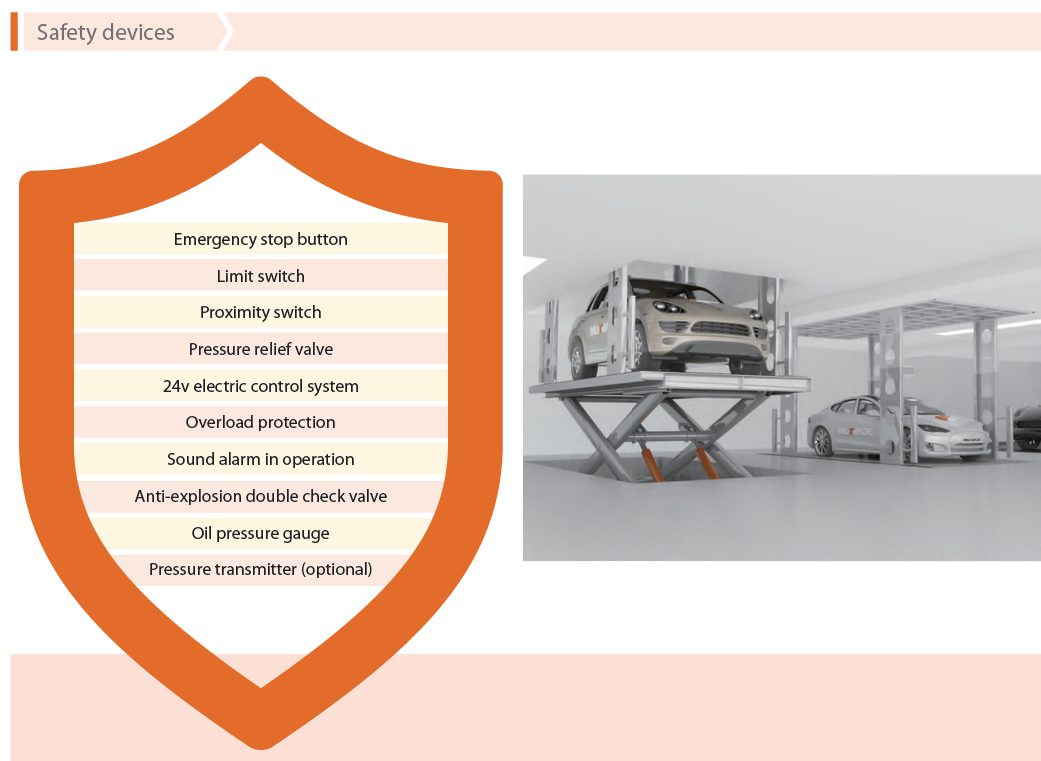

- Premium safety and simple operation
- Half pre-assembled structure, easy to install
- Fine finishing of powder coating
- Remote control is optional
- Max triple platforms are possible
Specifications
| Model | S-VRC-2 |
| Platform quantity | 2, up to 3 |
| Lifting capacity | 3,000kg per platform |
| Lifting height | 2,000-6,000mm |
| Platform length | 2,000-6,000mm |
| Platform width | 2,000-3,000mm |
| Platform material | Steel checker plate (standard) / aluminum checker plate (optional) |
| Drive mode | Hydraulic cylinders |
| Operation | Push buttons (standard) / remote controller (optional) |
| Power pack | 5.5kw or above |
| Power supply | 208-480v, 50/60hz, 3 phases |
| Lifting speed | 4/min |
| Finishing | Powder coating |
| Color | Bespoke |
- In garages for private houses or apartment buildings
- In prefabricated garages
- For vehicle transportations between floors, for example, from ground to higher floors or basement.
- To offer more parking spots in office buildings or residential and commercial buildings
- Can be optionally used outdoor
Elegant, aesthetic and invisible
S-VRC-2 makes it all possible to hide your car and let it disappear
*Please contact Mutrade to adapt the available space to your needs and blend in with the nature.
