Ever wondered how to save space while parking multiple cars at home? Car Elevator offer a smart solution. They transport vehicles vertically, maximizing garage space efficiently.
In this post, you’ll learn what a car elevator is and why it’s essential in modern buildings. We’ll cover benefits, uses, and key factors to consider.
Discover how car elevators improve convenience and add value to both residential and commercial properties.
Table of Contents
When choosing a car elevator, understanding the types available helps you pick the best fit for your building and needs. The main types are hydraulic and traction elevators. Each has unique features and suits different building types and uses.
Hydraulic car elevators use fluid pressure to push a piston that lifts the platform. They are known for:
Simple design and reliable operation
High load capacity, often between 3,000 to 5,000 kg (6,600 to 11,000 lbs)
Smooth, quiet lifting at slower speeds
These elevators work best in low-rise buildings or garages where speed is less critical. Examples include:
Residential villas
Small auto repair shops
Underground parking garages
Hydraulic systems require a pit for the piston and usually less overhead clearance, making them suitable when space above the elevator shaft is limited.
Traction elevators use steel ropes, pulleys, and counterweights to move the car. They offer:
Faster and smoother operation
Energy efficiency, especially in taller buildings
Higher load capacities, ranging from 3,000 to 10,000 kg (6,600 to 22,000 lbs)
These are ideal for mid- to high-rise commercial buildings, such as:
Multi-story parking garages
Car dealerships
Commercial office buildings
Traction elevators may require more overhead space for machinery but provide better speed and efficiency over longer travel distances.
Though the terms are sometimes used interchangeably, car elevators differ from car lifts in key ways:
Feature | Car Elevator | Car Lift |
|---|---|---|
Purpose | Transport vehicles vertically between floors | Lift vehicles for maintenance or short distances |
Structure | Enclosed cabin with doors and safety systems | Open platform, minimal enclosure |
Usage Scenario | Residential towers, commercial buildings | Garages, workshops |
Safety Standards | Must comply with elevator codes (e.g., EN81, ASME) | Often not regulated as elevators |
Driver Inside Vehicle | Usually allowed or required | Not designed for driver onboard |
Travel Distance | Multi-floor vertical travel | Limited vertical range (usually one level) |
Load Capacity | 3,000–5,000+ kg | Often lower capacity |
Installation Complexity | Requires shaft, pit, sometimes machine room | Simpler, surface-mounted |
Cost | Higher due to engineering and code compliance | Lower, more economical |
Residential car elevators typically have:
Smaller dimensions to fit home garages
Load capacities around 3,000 to 5,000 kg
Focus on convenience, space-saving, and aesthetics
Commercial car elevators are larger and built for:
Higher traffic and heavier vehicles
Greater load capacities, sometimes up to 10,000 kg
Faster speeds and more robust safety features
They are designed to handle continuous use in parking garages, dealerships, or office buildings.
Note: When selecting a car elevator, consider the building type and vehicle load to choose between hydraulic or traction systems for optimal performance and safety.
When planning a car elevator, several key factors shape its size and design. Understanding these helps ensure the elevator fits your building and vehicles perfectly.
The size of your vehicle directly affects the elevator cabin dimensions. Larger cars, SUVs, or trucks need more space inside the elevator to fit comfortably without risk of damage. Pay attention to:
Vehicle length, width, height
Weight of the vehicle and passengers
Load capacity needed for safe operation
For example, a compact sedan might require a cabin about 2.4 meters wide and 4.5 meters long, while a large SUV or van demands wider and longer cabins. Load capacity typically ranges from 3,000 to 5,000 kg for residential elevators but can go higher for commercial use.
Your building’s architecture limits the elevator shaft size. Space restrictions may come from:
Garage or basement dimensions
Ceiling height and pit depth
Structural elements like beams or columns
In existing buildings, retrofitting a car elevator might mean working within tight shaft dimensions. New constructions offer more freedom but still require early coordination between architects and elevator suppliers to allocate adequate shaft width, depth, and overhead clearance.
Local regulations influence elevator dimensions and installation requirements. Codes often specify:
Minimum cabin and door sizes for safe vehicle entry/exit
Pit depth and overhead clearance for mechanical components
Safety features like emergency stops and sensors
Compliance ensures legal approval and safe operation. Ignoring codes can lead to costly redesigns or installation delays. It’s best to consult local authorities or experienced elevator engineers during planning.
Additional features can increase the elevator’s size, such as:
Passenger seating or standing space inside the cabin
Extra storage compartments or equipment racks
Advanced control panels or user interfaces
If you want a luxurious residential elevator with space for passengers to exit the vehicle and ride inside, plan for a larger cabin. Similarly, including storage for car care products or tools requires more room.
The chosen elevator technology impacts shaft and pit size:
Hydraulic elevators require deeper pits for pistons but less overhead clearance. They suit low-rise buildings with limited overhead space.
Traction elevators need more overhead room for machinery but shallower pits. They work well in taller buildings needing faster travel speeds.
Each type demands different shaft dimensions to house mechanical parts and ensure smooth operation.
Tip: Measure your largest vehicle carefully and add extra clearance when planning elevator dimensions to avoid tight fits and improve safety.
When planning a car elevator, knowing the standard dimensions helps ensure your vehicle fits comfortably and the elevator operates safely. However, customization options allow tailoring the elevator to specific needs and space constraints.

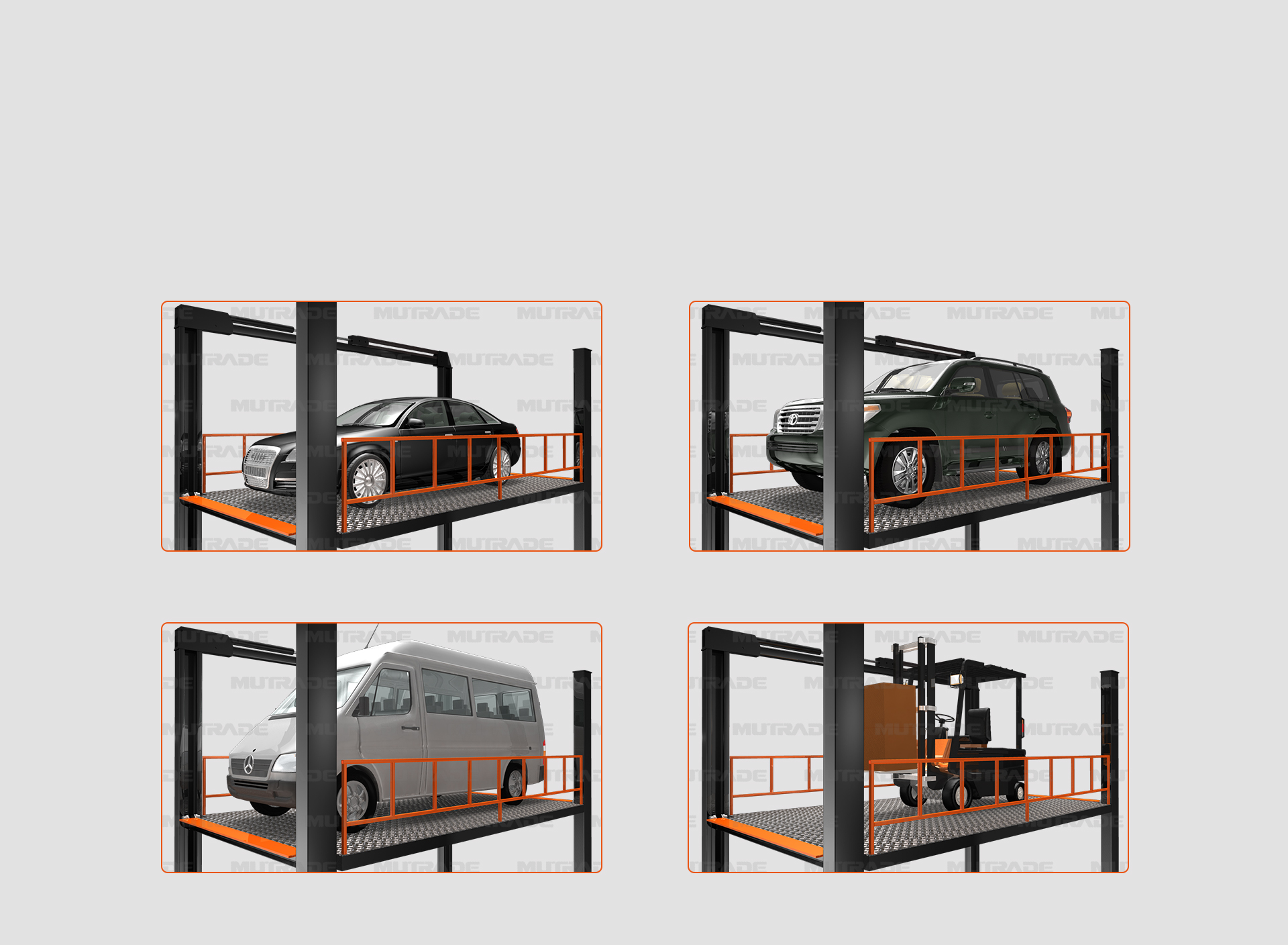

Residential car elevators usually accommodate one vehicle, often a sedan or SUV. Common dimensions include:
Elevator car width: 2.1 to 2.4 meters (7 to 8 feet)
Elevator car length: 4 to 4.6 meters (13 to 15 feet)
Elevator car height: 2.1 to 2.4 meters (7 to 8 feet)
The shaft housing the elevator is slightly larger to allow for mechanical parts and safety clearance:
Shaft width: 2.4 to 3 meters (8 to 10 feet)
Shaft length: 4.6 to 5.2 meters (15 to 17 feet)
Pits are necessary beneath the elevator platform to accommodate buffers or hydraulic pistons:
Pit depth: 1.2 to 1.5 meters (4 to 5 feet)
These dimensions work well for typical passenger vehicles and fit most home garages or basements.
Commercial elevators handle more traffic and larger vehicles. Their dimensions are larger to accommodate vans, trucks, or multiple vehicles in some designs:
Elevator car width: 2.5 to 3.4 meters (8.2 to 11.2 feet)
Elevator car length: 5.7 to 6 meters (18.7 to 20 feet)
Elevator car height: Around 2.5 meters (8.2 feet)
Shafts and pits are correspondingly larger:
Shaft width: Approximately 3 to 4.6 meters (10 to 15 feet)
Shaft length: 6 to 6.3 meters (20 to 20.7 feet)
Pit depth: 1.2 to 1.8 meters (4 to 6 feet)
These sizes support heavier loads and faster operation in commercial settings like parking garages or dealerships.
Customization lets you adapt the elevator to your building’s unique constraints and vehicle types. Options include:
Adjusting car length, width, height for oversized vehicles or extra passenger space
Modifying shaft dimensions to fit within tight architectural spaces
Shallow pit designs to reduce excavation costs or accommodate existing foundations
Door size variations to allow wider or taller vehicle entry
Finish materials and interior design to match building aesthetics
Working closely with elevator suppliers and architects ensures the best fit and performance.
Door dimensions are critical for safe, easy vehicle entry and exit. Typical door sizes range:
Width: 2.4 to 2.6 meters (7.9 to 8.5 feet) for residential; wider for commercial
Height: Around 2.4 meters (7.9 feet)
Door types vary:
Center-opening doors provide wide access
Side-opening or sliding doors save space in narrow shafts
Multi-panel folding doors maximize opening width in tight spots
Proper door sizing prevents vehicle damage and streamlines loading.
The pit beneath the elevator platform must be deep enough for mechanical parts and safety buffers:
Residential pits: 1.2 to 1.5 meters (4 to 5 feet)
Commercial pits: up to 1.8 meters (6 feet)
Overhead clearance above the top floor landing ensures room for machinery and safe cabin travel:
Typically 3 to 4.5 meters (10 to 15 feet) depending on elevator type
Hydraulic elevators usually need deeper pits but less overhead space, while traction elevators require more overhead clearance but shallower pits.
Tip: When designing your car elevator, always measure your largest vehicle and add at least 15-20 cm (6-8 inches) clearance in all directions for safe maneuvering and future-proofing.
When planning a residential car elevator, understanding the costs involved helps you budget effectively. Costs depend on elevator type, capacity, installation complexity, and customization options.
Residential car elevators generally cost between $20,000 and $50,000. Factors influencing the price include:
Load capacity: Smaller elevators (around 3,000 kg) tend to be less expensive than larger ones (up to 5,000 kg or more).
Elevator type: Hydraulic elevators usually cost less upfront but may have higher maintenance costs. Traction elevators often cost more due to complex machinery and faster speeds.
Standard vs. custom: Standard models with common dimensions cost less than fully customized elevators tailored to unique spaces or vehicle sizes.
For example, a basic hydraulic elevator with a 3,000 kg capacity might cost around $20,000 to $30,000, while a traction elevator with a 5,000 kg capacity and custom features could exceed $50,000.
Installation expenses can add 30% to 50% to the total project cost. These depend on:
Shaft construction: Building or modifying the elevator shaft, including pit excavation and structural reinforcements.
Electrical work: Wiring, control panels, and power supply upgrades.
Building modifications: Adjustments to garage or basement layouts, ceiling heights, and door openings.
Labor: Skilled technicians for installation and testing.
For retrofit projects, installation may be more expensive due to space constraints or the need for additional construction work.
New construction: Easier installation with lower structural modification costs; total cost closer to base price.
Retrofit in existing home: Higher costs due to shaft excavation, reinforcement, and adapting existing spaces.
Luxury customization: Adding features like premium finishes, passenger seating, or advanced control systems increases price.
For instance, a simple installation in a new home might cost $25,000 total, while a retrofit with custom features could reach $60,000 or more.
Increased costs: Larger elevator size, higher load capacity, complex shaft design, premium materials, longer travel distances, and stringent local codes.
Cost savings: Choosing hydraulic systems, standard dimensions, minimal customization, and early planning coordination with architects.
Proper planning and consulting experienced elevator suppliers can help control costs and avoid surprises.
Tip: Always include a contingency budget of at least 10-15% for unexpected installation challenges or design changes during your residential car elevator project.
Installing a residential car elevator requires careful planning and coordination. Getting it right ensures smooth operation, safety, and long-lasting performance. Here are the key points to consider.
The shaft must be sized to fit the elevator car plus extra space for guide rails, doors, and mechanical parts. Typical shaft dimensions depend on the elevator type and vehicle size but usually exceed the car size by at least 0.3 to 0.6 meters (1 to 2 feet) in width and depth. The pit beneath the shaft should be deep enough to house buffers or hydraulic pistons, commonly between 1.2 and 1.8 meters (4 to 6 feet). Early coordination with architects helps allocate the right shaft and pit sizes during building design, avoiding costly adjustments later.
A dedicated electrical supply with proper voltage and amperage is essential. The system must include control panels, wiring, and safety devices installed according to local electrical codes. Structurally, the shaft and pit must support the elevator’s weight and dynamic loads during operation. Reinforcing walls or floors may be necessary, especially in retrofit projects. Load-bearing capacity calculations ensure the building can safely accommodate the elevator system.
Local building codes govern car elevator installation. These rules cover shaft dimensions, door sizes, pit depth, overhead clearance, fire safety, emergency communication, and safety devices like sensors and emergency stops. Compliance is non-negotiable for legal approval and occupant safety. Working with certified elevator engineers and local authorities from the start streamlines the approval process and ensures the elevator meets all safety standards.
Successful installation depends on close collaboration among architects, elevator manufacturers, and contractors. Architects must design the shaft and building layout to fit elevator specifications. Elevator suppliers provide technical details, installation guidelines, and customization options. Contractors handle construction and installation. Regular communication helps resolve design conflicts, schedule work efficiently, and deliver a seamless installation.
Space limitations: Retrofitting elevators in existing buildings often faces tight shafts or low ceilings. Customizing elevator dimensions or choosing shallow pit designs can help.
Structural reinforcement: Older buildings may need additional support. Early structural assessment and planning avoid delays.
Electrical upgrades: Some sites require power system enhancements. Coordinate with electricians early to ensure readiness.
Code compliance: Navigating complex local codes can be tricky. Engage experienced professionals familiar with regulations.
Installation delays: Weather, supply chain issues, or unforeseen site conditions may cause setbacks. Maintain buffer time in project schedules.
Addressing these challenges proactively ensures a smooth installation process.
Tip: Involve elevator suppliers and architects early to align shaft, pit, and electrical plans, reducing costly redesigns during installation.
Ensuring safety and reliability of a car elevator requires multiple built-in features and regular upkeep. These systems protect users, vehicles, and the building while extending the elevator’s lifespan.
Car elevators come equipped with several safety devices to prevent accidents:
Obstacle sensors: Detect objects or people blocking the doors or platform, stopping elevator movement immediately.
Door interlocks: Ensure elevator won’t move unless doors are fully closed and locked.
Position sensors: Confirm the elevator car aligns perfectly with landings for safe entry and exit.
Speed governors: Monitor and control elevator speed to prevent overspeeding.
These sensors work together to create a safe environment for both vehicles and passengers.
Overloading can cause serious mechanical failures or accidents. Car elevators include:
Load sensors: Measure total weight on the platform and prevent operation if the load exceeds limits.
Emergency stop buttons: Located inside the car and at landing doors, allowing immediate halting in emergencies.
Automatic braking systems: Activate if abnormal speed or load conditions occur, stopping the elevator safely.
These features ensure the elevator operates only under safe conditions.
Fire safety is critical, especially in enclosed shafts:
Fire-rated doors and materials: Resist fire spread and protect the shaft structure.
Smoke detectors and alarms: Alert occupants and automatic systems in case of fire.
Emergency communication: Intercoms or alarms connect passengers to emergency responders.
Backup power: Batteries or generators keep the elevator operational during power outages, allowing safe evacuation.
These systems help protect lives and property during emergencies.
Regular maintenance keeps the elevator safe and functioning smoothly:
Scheduled inspections: Certified technicians check mechanical parts, sensors, and controls for wear or faults.
Lubrication: Moving components need proper lubrication to reduce friction and wear.
Safety device testing: Emergency stops, door interlocks, and sensors should be tested frequently.
Cleaning: Keep shafts, doors, and controls free from debris or obstructions.
Electrical system checks: Ensure wiring and backup power systems are reliable and up to code.
Maintaining a detailed log of inspections and repairs helps track elevator health.
Users should know how to react during elevator emergencies:
Emergency stop use: Teach how and when to press the stop button.
Evacuation protocols: Clear instructions on exiting safely if stuck.
Communication: Use emergency intercoms or phones to call for help.
Regular drills: Practice emergency scenarios, especially in commercial buildings.
Proper training reduces panic and improves response times during incidents.
Tip: Establish a routine maintenance contract with certified elevator technicians to ensure all safety features remain fully functional and compliant with local regulations.
Selecting the perfect car elevator requires thoughtful consideration of your vehicle types, building constraints, and desired features. Making the right choice ensures safety, convenience, and long-term satisfaction.
Start by measuring the largest vehicle you plan to transport. Consider length, width, height, and weight. SUVs, trucks, or vans need more space than compact cars. Also, think about future vehicles you might own. Your elevator should comfortably fit without tight clearances to avoid damage or difficulty maneuvering. For example, a standard sedan might fit in a 2.4 m wide by 4.5 m long cabin, but a large SUV could need closer to 2.7 m by 5 m.
Next, assess the space where the elevator will be installed. Check shaft width, depth, ceiling height, and pit depth. Existing buildings may limit shaft size or pit excavation depth. New constructions offer more flexibility but require early planning to allocate sufficient space. Don’t forget to consider overhead clearance for machinery, especially for traction elevators. Also, review structural factors like load-bearing capacity and potential reinforcements.
Choose between hydraulic or traction systems based on your building and performance needs. Hydraulic elevators suit low-rise buildings with limited overhead space. Traction elevators fit taller buildings and offer faster speeds. Decide on door types—center-opening, side-sliding, or multi-panel folding—depending on your space and vehicle access preferences. Additional features like remote control operation, safety sensors, or passenger space inside the cabin can enhance usability.
If standard sizes don’t fit your needs, explore customization. Adjust cabin length, width, and height to match vehicle dimensions and desired features. Modify shaft dimensions or opt for shallow pits to work around building limitations. Door sizes can be tailored for wider or taller vehicles. Interior finishes and lighting can be personalized to blend with your home or building aesthetics. Customization ensures your elevator is both functional and stylish.
Finally, work closely with experienced elevator suppliers, architects, and engineers. They help balance vehicle needs, building constraints, and regulatory requirements. Professionals can guide you through compliance with local codes, safety standards, and installation best practices. Early consultation reduces costly changes and delays. They also recommend suitable elevator models and customization options, ensuring your investment delivers maximum value and performance.
Tip: Before finalizing your car elevator, measure your largest vehicle carefully and share these dimensions with your elevator supplier to ensure a perfect fit and smooth operation.
This guide covers essential car elevator dimensions, costs, and installation requirements. Understanding vehicle size and building constraints ensures a perfect fit. Investing in a residential car elevator offers convenience, safety, and space-saving benefits. Custom options tailor solutions to unique needs. Consulting experts helps navigate regulations and design challenges for optimal results. Qingdao Mutrade Co., Ltd. provides high-quality car elevators designed for reliability and efficiency, adding real value to your property.
A: A car elevator is an enclosed system designed to transport vehicles vertically between floors, complying with strict safety codes. Unlike car lifts, which are open platforms mainly for maintenance or short lifts, car elevators allow drivers inside and serve residential or commercial buildings.
A: Hydraulic car elevators use fluid pressure, ideal for low-rise buildings with limited overhead space. Traction elevators use ropes and counterweights, offering faster speeds and energy efficiency for taller buildings.
A: Vehicle size, building space constraints, local codes, elevator type, and desired features all impact elevator dimensions to ensure safe, comfortable vehicle transport.
A: Residential car elevators generally range from $20,000 to $50,000, with installation adding 30% to 50%. Costs vary by elevator type, capacity, customization, and building modifications.
A: Proper shaft and pit dimensions, electrical supply, structural support, and compliance with local safety codes are essential for safe and efficient car elevator installation.
A: Car elevators include obstacle sensors, door interlocks, overload protection, emergency stops, fire-rated doors, backup power, and routine maintenance to ensure user and vehicle safety.
