EnglishViews: 80 Author: Site Editor Publish Time: 2026-04-23 Origin: Site
Urban parking scarcity continues to challenge property owners, facility managers, and homeowners worldwide. The traditional solution—expanding footprint—is often impossible or prohibitively expensive. This article examines the Hydro-Park 1120, a compact two-post hydraulic parking lift engineered to create two parking spaces in the footprint of one . With a lifting capacity of 2,000 kg (4,400 lbs) and a usable platform width of 2,200 mm (7'3''), this system transforms single parking bays into double-capacity assets . The article details its technical specifications, safety features, installation requirements, and ideal applications for residential, commercial, and automotive environments.
Every parking space represents a fixed asset with a hard ceiling on value is until now. Property owners worldwide face the same dilemma: demand for parking exceeds supply, yet expansion is impossible.
Residential garages house multiple vehicles but lack square footage. Apartment buildings struggle to meet tenant parking requirements. Car dealerships need to maximize inventory display. Commercial facilities lose revenue when parking capacity is capped.
Traditional solutions is adding surface lots, building parking structures, or expanding garages are cost-prohibitive, space-constrained, or both. The industry needed a different approach: not horizontal expansion, but vertical optimization.
The Hydro-Park 1120 represents a paradigm shift in parking efficiency. This compact two-post, two-level hydraulic lift creates two parking spaces in the footprint of a single bay .
Hydro-Park 1120 is a hydraulic two-post parking lift designed for dependent parking is one vehicle parks on the raised platform while another parks beneath it . Unlike complicated automated systems, the HP1120 offers straightforward, reliable operation through a key switch panel mounted on the control arm .
The Hydro-Park 1120 occupies a specific position in Mutrade's product lineup :
| Model | Lifting Capacity | Application | Platform Width |
|---|---|---|---|
| Hydro-Park 1120 | 2,000 kg | Sedan + Sedan | 2,200 mm |
| Hydro-Park 1123 | 2,300 kg | SUV + Sedan | 2,100 mm |
| Hydro-Park 1127 | 2,700 kg | SUV + SUV | 2,100 mm |
The HP1120 is optimized for standard sedans and mid-size vehicles, making it the ideal choice for residential and commercial applications where extreme ground clearance is not required.
Every component of the Hydro-Park 1120 is engineered for safety, durability, and ease of use.
Positioning Lock: Unlike dynamic anti-falling locks found on heavier models, the HP1120 features a positioning lock specifically calibrated for its weight class . This mechanism engages when the platform reaches its designated height, securing the upper vehicle in place.
Automatic Shut-Off: The system automatically shuts off whenever the operator releases the key switch . This failsafe design prevents unintended operation and ensures the lift only moves when actively controlled.
24V Control Voltage (Optional): While the standard HP1120 operates on 220V, many two-post lifts in Mutrade's lineup feature 24V control voltage to eliminate electric shock risk .
Galvanized Wave Platform: The platform features a galvanized waving surface design, which is high-heel friendly—no more heels catching in grates . The galvanization also provides corrosion resistance for longevity.
The HP1120 utilizes a 2.2 kW hydraulic power pack driving a synchronized lifting chain system . This engineering choice ensures:
Level platform operation under all working conditions
Smooth lifting and lowering without jerking
Quiet operation suitable for residential environments
Lower maintenance costs compared to mechanical screw systems
The hydraulic design also enables gravity-driven lowering, reducing electrical consumption and operating costs .
Every steel component receives high-quality surface coating supported by Akzo Nobel powders, providing long-lasting protection against corrosion and wear . Bolts and nuts pass 72-hour salt spray tests, ensuring reliability even in coastal environments .
The Hydro-Park 1120's simplified structural design reduces installation time by approximately 30% compared to conventional systems .
Floor construction: Standard reinforced concrete capable of supporting 2,000 kg dynamic loads
Power supply: 220V, single phase (or adaptable to local specifications)

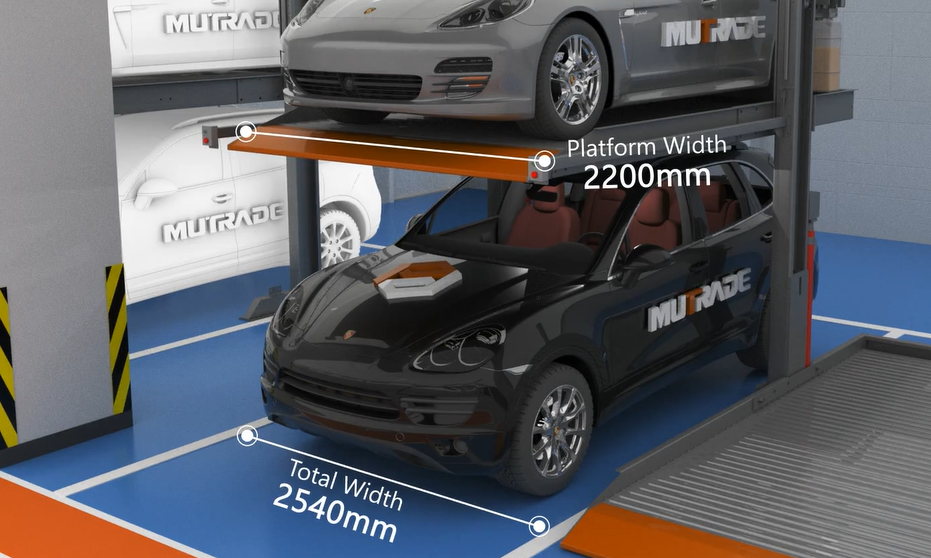

Parking space width: Minimum 2,540 mm to accommodate outer dimensions
The bolt-together design eliminates on-site welding, reducing labor costs and speeding assembly. Unlike systems requiring deep pits or extensive foundation work, the HP1120 can be installed on existing flat surfaces with appropriate anchoring .

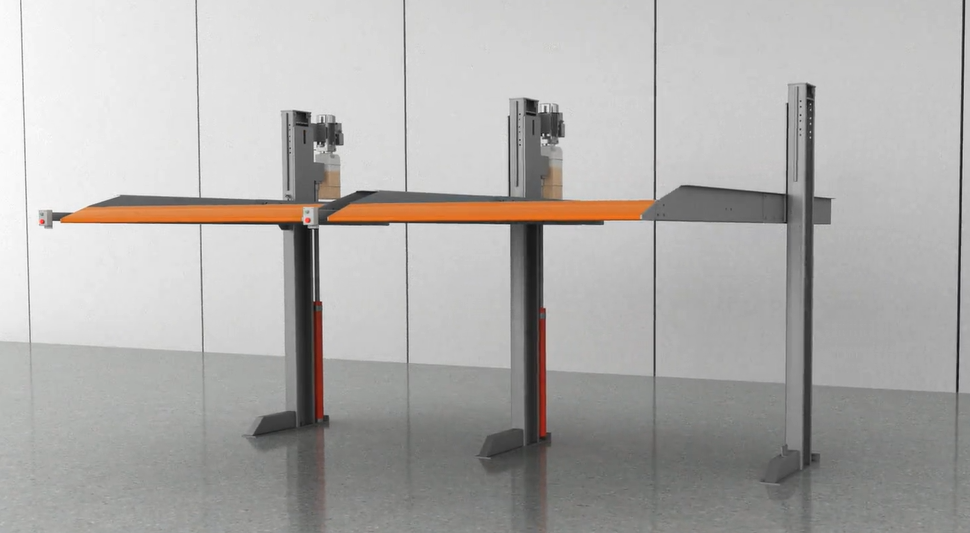

When installing multiple units in tandem, the HP1120 supports the sharing post feature is adjacent lifts share common columns, minimizing space consumption and reducing material costs . This makes the system ideal for parking facilities requiring dozens or hundreds of spaces.
The HP1120's 2,000 kg capacity and 2,200 mm usable platform width position it for specific applications .
Residential Home Garages: Homeowners with multiple sedans or small SUVs can double their garage capacity without structural modifications. The compact design fits within standard garage dimensions.
Apartment and Condominium Buildings: Property managers can add parking capacity for tenants without expensive garage expansions. The key switch operation allows controlled, attended use .
Car Dealerships: Display more inventory on limited lots. The quick <35-second lifting time enables rapid vehicle access for test drives .
Commercial Parking Facilities: Operators can maximize revenue per square foot by converting single spaces into double-capacity bays .
Valet Parking Operations: The reliable hydraulic operation and automatic safety locks make the HP1120 suitable for attended facilities with frequent vehicle movement.
The HP1120 accommodates:
Standard sedans (both upper and lower positions)
Mid-size vehicles
For full-size SUV requirements, Mutrade offers the HP1123 (2,300 kg capacity, SUV+Sedan) and HP1127 (2,700 kg capacity, SUV+SUV) .
The Hydro-Park 1120 delivers measurable operational advantages.
In a single standard parking bay (approximately 2.5m x 5m), the HP1120 accommodates two vehicles. For facilities with 100 spaces, deploying 50 HP1120 units could theoretically provide 150 parking positions—a 50% capacity increase.
When compared to constructing new parking structures, parking lifts like the HP1120 offer dramatically lower per-space costs. Independent analyses suggest a 50% smaller footprint requirement and significant construction cost avoidance .
The hydraulic system requires minimal maintenance. The galvanized platform resists corrosion. The powder-coated frame maintains appearance over years of service. Low maintenance costs are a documented feature of the HP1120 design .
Drivers position their vehicle on the lower level or on the raised platform. The operator activates the key switch, and the hydraulic system lifts the platform in under 35 seconds . The auto lock release system simplifies operation .
The Hydro-Park 1120 and Mutrade's manufacturing processes meet rigorous international standards:
With over six years as a leading exporter of parking equipment from China, Mutrade (operating as Hydro Park Machinery) serves clients across 90+ countries . The company's vertically integrated manufacturing ensures quality control from raw materials to finished products.
Key differentiators include:
Engineering support for custom configurations
Bolt-together designs reducing installation complexity
Factory-direct pricing without distributor markups
Comprehensive documentation for installation and maintenance
Global shipping experience to major ports worldwide
The Hydro-Park 1120 solves the universal parking challenge not by demanding more land, but by engineering more value from existing space. With 2,000 kg lifting capacity, 2,200 mm usable platform width, and <35 second lifting time, it transforms single parking bays into double-capacity assets.
From residential garages to commercial facilities, the HP1120 delivers reliable, cost-effective parking optimization without complex installation or maintenance requirements. For property owners facing space constraints and growing parking demand, the Hydro-Park 1120 represents the smart alternative to expensive expansion.
